For example, a set-up for four (4) 6.2510"
wide x 22-gauge multi-blank strips requires only 55 spacers. A
set-up to produce two (2) 29.880" wide 20-gauge multi-blank
strips requires only 52 spacers. Those set-ups are easily
completed in 15-minutes while the line is running. By
comparison, a coil-to-coil slitter set-up for eleven 3.125" wide
and eight 2.871" wide x 18-gauge strips requires 283 spacers and
45-minutes to set-up. The Turret Head™ Slitter equipped with the
multi-blank tooling produces multi-blanks to a width tolerance
of ±0.002".

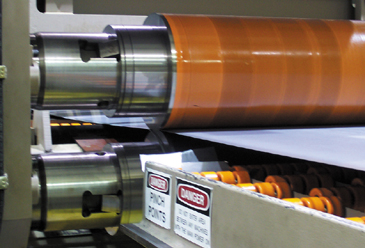

Pushbutton Lock-Up
Precision Electronic Servo Feed:
The Multi-Blanking Line is equipped with a
Precision Servo Feed that feeds and measures strips for cut-off.
The Servo Feed employs high-traction non-marking feed rolls
driven by an electronic AC servo system to feed and precisely
measure the strip. The microprocessor motion control system
generates consistent sheet and blank length tolerances of
±0.005" at high-cyclic
rates. The motion control system receives feed roll position
data from an electronic encoder, and the information is
instantly utilized for accelerate, decelerate, and full stop
commands based upon the feed length. The motion control system
automatically computes the ideal production speed based upon the
part length entered into the operator data panel. An adjustable
acceleration/deceleration control is provided to compensate for
various material surface conditions.

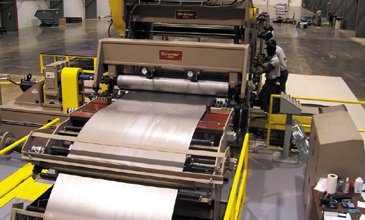

Precision Servo Feed w/DC Shear
|
Continuous-Stroke DC Shear:
The Mi-Tech line is equipped with a
variable-speed bow-tie mechanical Shear, which complements the
high-cyclic rate capability of the Servo Feed. The Shear can
operate in a "single-cycle" mode when processing pattern
length sheets, and a "continuous-cycle" mode when
processing shorter blanks and multi-blanks. Synchronized with
the Servo Feed, the DC Shear can operate at a rate of up to 100
cycles-per-minute in the continuous-cycle mode. A variable-speed
DC motor drives the upper shear ram through a clutch-brake and
crank shaft. The DC motor is run at a constant RPM and the
clutch-brake is "single-cycled" when processing pattern length
sheets. When processing short blanks, the clutch-brake is
locked-up and the Shear ram cycles non-stop. The Servo Feed
cycle and the DC Shear cycle are synchronized to produce the
precise part lengths at high-cyclic rates.
Auto Reject Multi-Blank Stacker
The Mi-Tech Stacker is capable of
automatically stacking pattern sheets and up to six (6)
multi-blanks. The multi-blank strip dividers are automatically
positioned by an AC servo drive. An "air float" system prevents
the sheets from sliding sheet-on-sheet during stacking.
Non-prime sheets and blanks are diverted from the Stacker and
directed to a reject station located behind the Stacker.

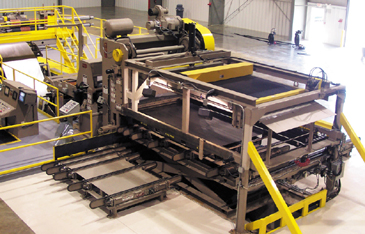

Servo Feed, DC Shear & Stacker

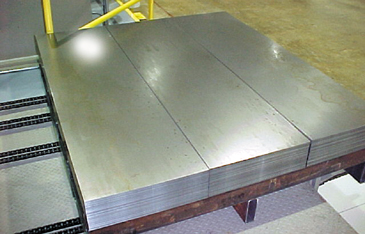

Solid Block multi-blank package
