Lafayette Steel & Aluminum Installs 72" Servo Feed CTL Line

Indianapolis, IN Lafayette Steel Sales has installed a Hydraulic Leveler/Precision Servo Feed Cut-to-Length Line in its Indianapolis, IN facility. The line is capable of converting 50,000# x 72" wide cold rolled and galvanized carbon steel, aluminum and stainless coils in gauges from .018" through .135" into shape-corrected flat sheets from 24" through 240" long. The line is equipped with a radio controlled Coil Loading Car, Shifting Base Uncoiler, Pinch Rolls, Entry Crop Shear, Computer Controlled Hydraulic Leveler, PVC/Interleaved Paper Applicator, Electronic Servo Feed, Hi-Speed Cut-Off Shear, Sheet Inspection/Reject Conveyor, and a 20 Drop Type Sheet Stacker.

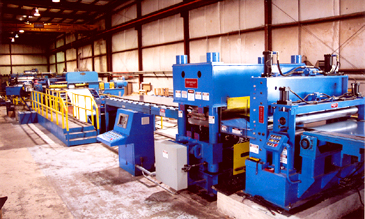

72" x .135" CTL Line

5-Hi Precision Hydraulic Leveler: The Lafayette Steel CTL Line is equipped with a massive 4-post precision 5-Hi shape-correction roller leveler equipped with seventeen 1.750" diameter work rolls supported by nine adjustable back-up flights. The back-up flights are positioned by 18-independently controlled hydraulic cylinders (9-entry and 9-exit) that provide work roll positioning and bending necessary for the elimination of strip shape defects such as coil-set, wavy-edges, and center-buckle. The hydraulic cylinders are controlled by a 2.80 GHz 40GB HD computer that precisely adjusts each cylinder via position data from linear voltage transducers installed in each back-up cylinder. Automatic Leveler set-up for various gauges is automatically accomplished based upon thickness and yield strength data input into the computer terminal by the operator. Work rolls can be re-positioned via computer inputs or pushbuttons while running. Via order or job number, the computer allows specific Leveler set-up parameters to be transferred to the computer memory, a time-saving feature when processing less-than-full coil orders. When the remainder of a coil is processed, the Leveler automatically sets-up to the work roll position previously employed to level that particular coil. Braner/Loopco Levelers employ no reversing motors, mechanical screw jacks, sliding wedges or tilting top frames to position the work rolls and back-ups. As a result, roll positioning is more accurate, and maintenance requirements are reduced. Periodical "calibration" of the Leveler can be accomplished in 5-minutes without any tools.

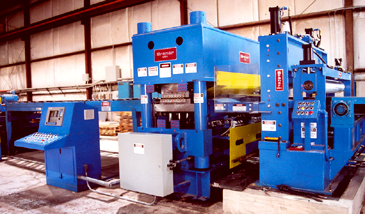

1.750" x 17-Roll x 9-Flight x 5-Hi Hydraulic Leveler


5-Roll Quick-Open Straightener

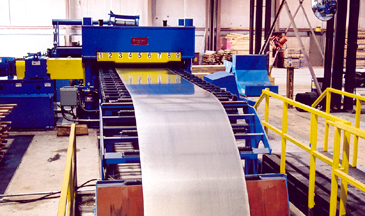

Electronic Servo Feed: The Leveler runs at a constant speed feeding the leveled strip into a free-loop. Large radius non-marking quadrant tables support the strip into and out of the loop. An Electronic Servo Feed draws the strip from the free-loop and feeds the strip to a pre-set dimension through the Shear for cut-off. A servo motor drives adjustable pressure upper and lower strip feed rolls through universal shafts. The strip feed length is precisely measured by an electronic encoder, while a microprocessor controls strip acceleration/deceleration. Sheet length and batch count are entered into a digital operating system. When compared to a mechanical "reciprocating mechanical feed", a Servo Feed has a higher "short-part" production rate. A Servo Feed is able to advance the strip immediately after the Shear completes its cycle, while a reciprocating mechanical feed shoves the strip forward, but must release the strip, slide the strip clamp backwards, and grab the strip again before it can start another cycle.

  Printable Version Page 2  >>
